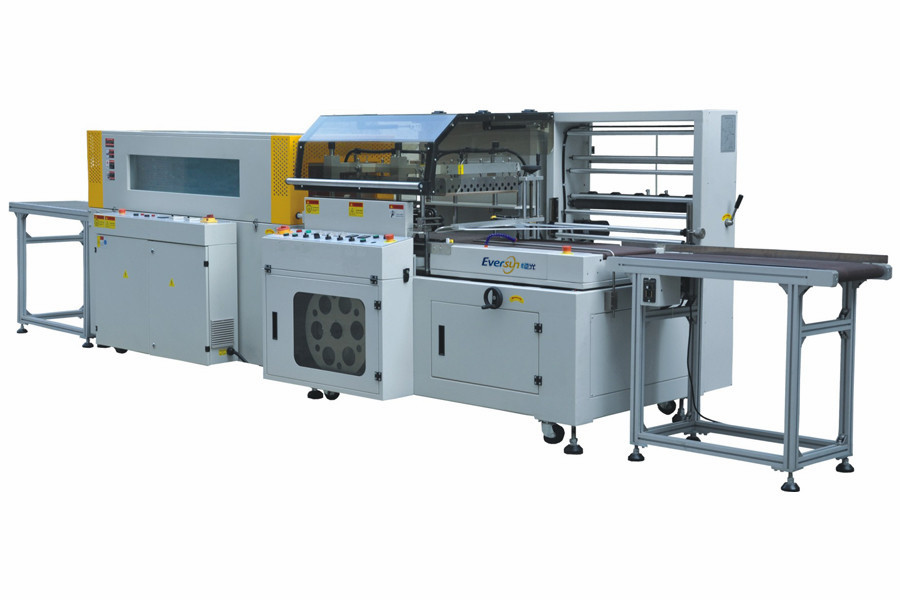

Automattic L Bar Sealer
Product Features:
1 This machine can joined with produce line with fully automatic and high efficient
Equipped With film boring device , manual film transmit system and manual convey and feeding system, Adoptable for variety measurement packing. Apply for Box, print,hardware product , electronics product shrinking packing
2 Attached with Teflon coated anti stick and anti high temperature aluminum seal blade, the film finishing is perfect
3 Movable Double Sensor attached in horizontal and vertical position. Also apply for small size item packing
4 Fine adjust of the machine for variety size packing, without change the Mould and Film system
5Different items can be mixed in one package
6 Fully protect with alarm system and machinery cover
7 Upper film and lower film control by timing device
Specification and parameter
|
Model No |
HG-5545C Packing station |
|
Max. Packing size (mm) |
L450*W350*H150mm |
|
Machine measurement(mm) |
1650mm(length)*900mm(width)*1550mm(height) |
|
Packing Speed |
20-40 packs per minute(depends on different packs Measurement) |
|
Rated power |
Single phase 380V 50 Hz,Total 2.5-3 Kw |
|
Air pressure |
5.5KG/cm2 |
|
Film Type |
POF |
