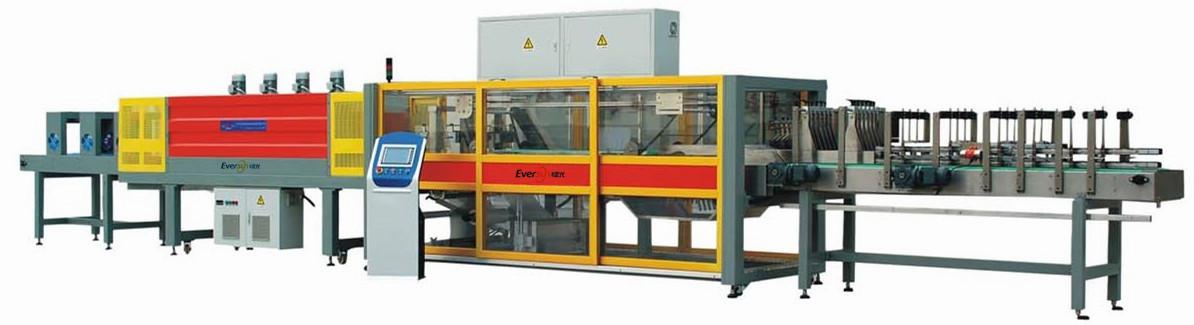

HG-35/45 High Speed Wrapping Machine
High speed single roller film shrink wrapping machine
1 With full automatic functions of bottle transfer and arrange, membrane packing ,sealing and cut,shrinkage,cooling and shaping,etc.
2 Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
3 The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
4 Adopt with PLC automatic program circulation control with stable and reliable performance.
5 The original imported guide bar cylinder guarantee correct op[eration and durable.
6 The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
7 All the transfer system is controlled by frequency changing devices With stable and smooth transfer speed.
8 Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
9 3 layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.
10 The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.
11 It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.
Specification:
Model: HG-35/45 Dimension For The Whole Unit L19600mm×1530mm×2500mm Thermal Shrinkage Tunnel Dimension L2500mm×700mm×450mm Max Package Dimension L460mm×W280mm×H350mm Packaging Speed 50-55 Packages /minute Transfer Belt Dimension 610mm Work Voltage/Power 3Phase 5Line 380V/50Hz 60KW Work Air Pressure 0.6-0.8Mpa Air Consumption 80NL/min
