Products
You are here:Home >> Products >>

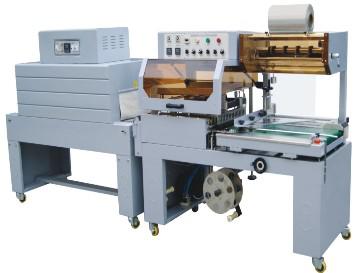

HG-5545B L Bar sealer



Product Features

1. This machine fully automatic  L type sealing machine which is widely used in mass production packaging line with high efficiency. Automatic film feeding boring device, manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items.

2. Sealing blade uses the aluminum knife with coated Teflon which is anti-stick coating & anti-high temperature.

3. Equipped with horizontal and vertical detection for choice to easily finish the sealing of thin and variety  items

4. Automatically-feeding: the length can be auto adjusted by the sensor and time relay. Matched the reduction motor makes the waste film automatically rolling;

5. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers

6. Different size products can also be packaged combinations to achieve the promotional effect;

7. Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;

8. The machine is equipped with organic glass shield with automatic alarm function which greatly improves safety;

9. The entire machine realizes unmanned operation with the production line connecting;

10. Film up-down synchronization mechanism specially designed to correct the deviation film;

11. I can be added easily tear functions according to customer requirements;

12. Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries' large quantities of shrink wrap.



Specification and parameter



Model No

HG-5545B

Max. Packing size (mm)

L450*W350*H100

Machine measurement

3400mm*900mm*1400mm

Packing Speed

10-15 packs per minute

Rated power

Single phase 220V 50 Hz,Total 3.5+11 KW

Air Pressure

5.5 kgs/cm3

Film Type

POF
